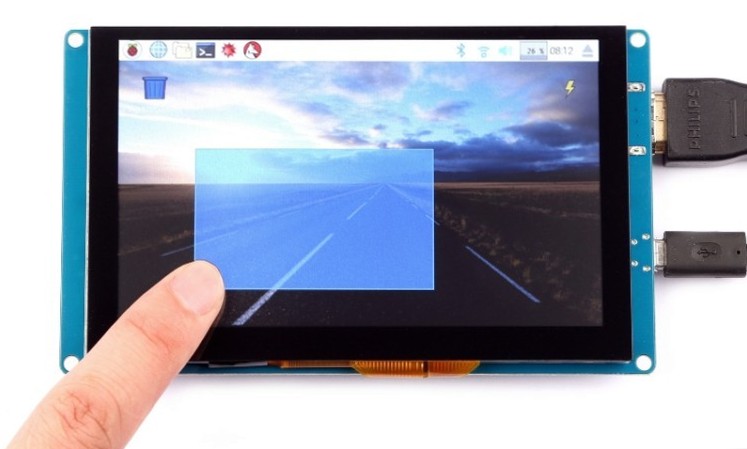

2019-08-18 Touch Screen The Comvette system employs a GeeekPi 5 inch diagonal capacitive touch screen. Its native resolution is 800x480. The GeekPi capacitive touch screen responds to touch in the same way as your smart-phone. A light touch is all that is needed to trigger a response. Note: I do not recommend using a "resistive" touch screen. Initially I used a 5" resistive touch screen from another manufacturer but I soon discovered that a resistive touch screen requires you to use a stylus or your fingernail when tapping on the screen. The soft pad of your fingertip doesn't register reliably with a resistive touch screen. The GeekPi touch screen:
The GeekPi touch screen dimensions:
The Raspberry Pi must be configured to work with the touch screen. This is accomplished by adding the block of text items shown below to the Raspberry Pi's /boot/config.txt file. # When using the GeeekPi 5 Inch 800x480 Capacitive Touch Screen HDMI # Monitor the following settings must be used: # # framebuffer_width (console framebuffer width in pixels) # framebuffer_height (console framebuffer height in pixels) # hdmi_force_hotplug (HDMI output even if no HDMI monitor is detected) # hdmi_group (DMT (Display Monitor Timings)) # hdmi_mode (custom video mode) # hdmi_cvt (custom CVT Coordinated Video Timings) # framebuffer_width=800 framebuffer_height=480 hdmi_force_hotplug=1 hdmi_group=2 hdmi_mode=87 hdmi_cvt=800 480 60 6 0 0 0 The touch screen is attached to the Raspberry Pi with a standard HDMI cable. The HDMI cable carries video from the Raspberry Pi to the touch screen. The touch screen receives power (5 volts) from the Raspberry Pi via a USB cable. The touch sreen also sends touch screen events back to the Raspberry Pi via the USB cable. Note: Because the Raspberry Pi has very little power to spare I recommend that you plug the USB cable into a powered USB hub attached to the Raspberry Pi and *not* into the Raspberry Pi itself. A Wiki is available that describes the touch screen in more detail. It can be found here. |
